Automatic folder gluer machine
One stop solution for your corrugated carton box
Language
One stop solution for your corrugated carton box
With experienced, professional, and well-educated employees,Cangzhou Ouguan Packing Machinery Co.,Ltd is efficient and excellent in developing products, one of which is Automatic folder gluer machine. It has some unique features. It is consistent with industry standards. Get in touch with us - call, fill in our online form or connect via live chat, we are always happy to help.
| Type: | Gluing Machine | Applicable Industries: | Other |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Condition: | New | Application: | Machinery & Hardware |
| Packaging Type: | case | Packaging Material: | Paper |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V/380V/415V | Place of Origin: | Hebei, China |
| Brand Name: | OUGUAN | Dimension(L*W*H): | 5400*1000*1330MM |
| Weight: | 1.5 KG | Warranty: | 2 years |
| Key Selling Points: | Easy to Operate | After-sales Service Provided: | Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | None |
| Certification: | CE/ISO |
Jessica Wu

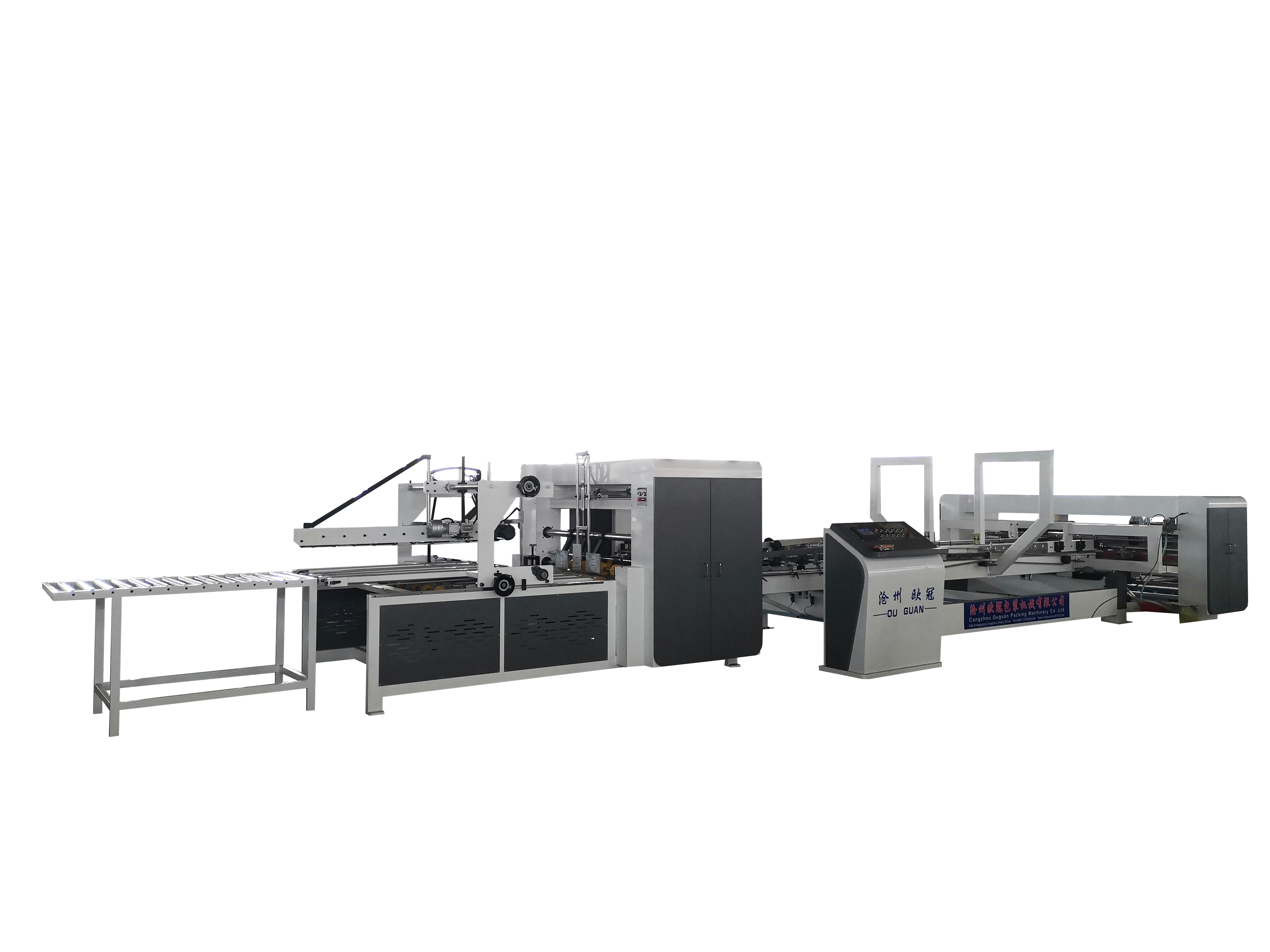

HY-QZD automatic gluer consist of three part which is feeding paper part,glue folding part and counting piling part
Introduction of the machine:
HY-QZD automatic gluer consist of three part which is feeding paper part,glue folding part and counting piling part,adjust the speed by digital,micro-adjust the phase by computer,with simple quick reliable and precise controlling style,automatic feeding paper,automatic gluing and folding,automatic counting ,automatic pilling and outputting,average sticking speed is 150pcs/imn,max speed is 220pcs/imn.High efficiency,save energy,enviromental is our top pursuit
Fuction and characteristic:
Automatically finish the top folding and middle folding,meanwhile finish the glue belt stickof the upper and down part,save albor and time.
suitable range is wide,can be used in different size of carton,puicd and convenient to adjust.
The machine work steadly and reliable,the effect is firm and good looking.
Easy to operate and easy to maintain
Automatic amend the carton right-angle degree.
Main technology parameter:
|
Model |
HY-2000 |
HY-2400 |
HY-2800 |
|
max.Cardboard |
1000*2000mm |
1200*2400mm |
1400*2800mm |
|
Mini.Cardboard |
260*600mm |
300*800mm |
300*800mm |
|
Installation area |
2400*13500mm |
2800*15500mm |
3000*15500 |
|
Power Required |
6.5kw |
80.kw |
10.5kw |
1. Counting and piling part:
The finished product can be counted and speed-changing ctc.automatically,pile,neatly,exactly output.The speed can be adjusted,can be controlled seperately,the piling speed is 130m/min.
2.Control gauge part:
Input by the simple touch sreen,can change the data,production speed and data-input while the machine is running,many change frntion of the screen.(can choose to pack the PLCcomputer operation procedure)
3.Folding part
Thefirst folding sine is 180degree,the third folding line is 135 degree
4.Automatic amending part:
amending the fish tail scissors error ect,effectively
